无人机 UAV FPV Aircraft Airtitan Specifications

Wingspan: 2520MM/ 99.2inch

Kits Airplane weight:2.4kg(5.3IB) including all reinforcement parts

Extra Payload:3.0kg-4.0kg (6.6IB-8.8IB)/

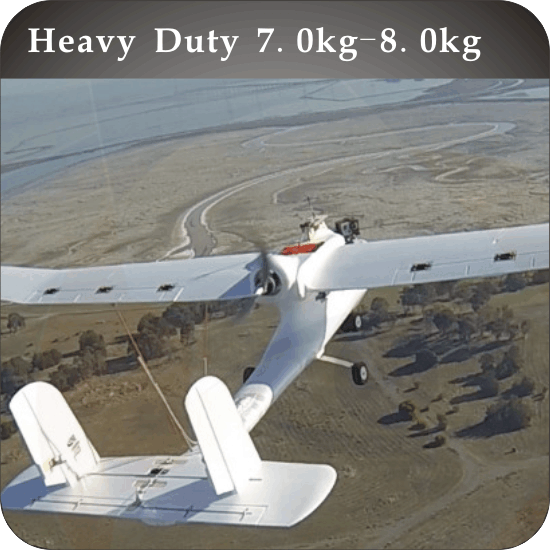

AUW  Flight weight>7.0kg

Propeller recommend: 15*6 / 15*7

Battery Recommendations:

Recommend 5S-6S Lipo 10000mah    (7S or more cells lipo battery no advised)

Recommend lower discharge rate battery ( for example 10C or 5C is okay)

High Quality Reinforcement :

Main-wing: built- in 4PCS alloy aluminum plus 2PCS carbon tube through the Main-wing

Control surface of Aileron and Elevator: carbon tube reinforced, no need further DIY

Horizontal stabilizer: 2PCS carbon tube reinforced

Tail-boom :1PCS Carbon Tube combined with thick Plywood reinforced

Stainless steel servo horn and Aluminium clevis

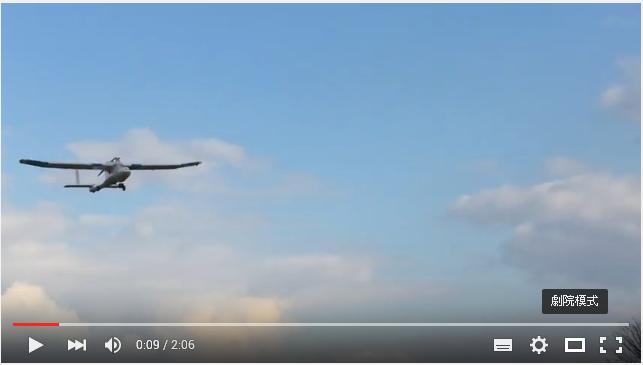

UAV Air Titan landing itself with no auto pilot! MrDisc000

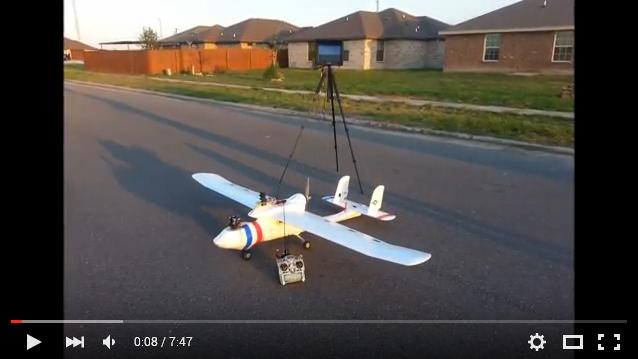

FPV Finwing Air Titan test Phil Johnson

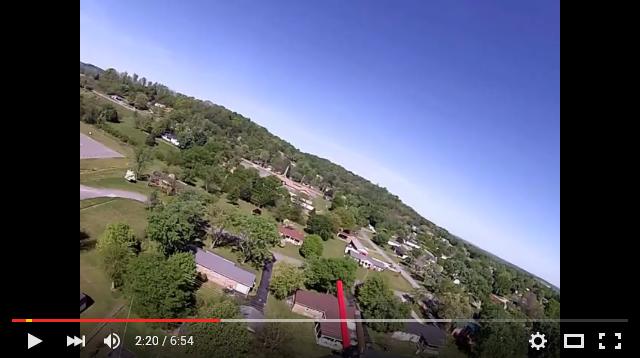

UAV Finwing Air Titan Maiden Flight jwall2011

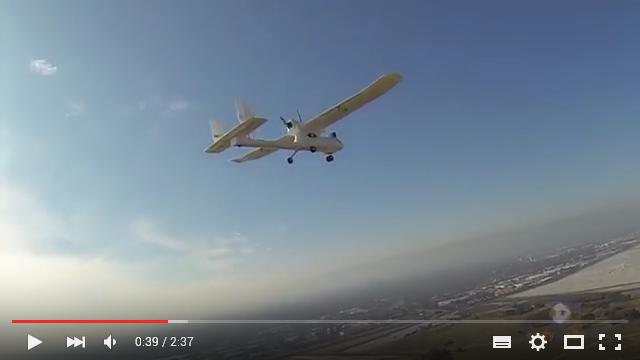

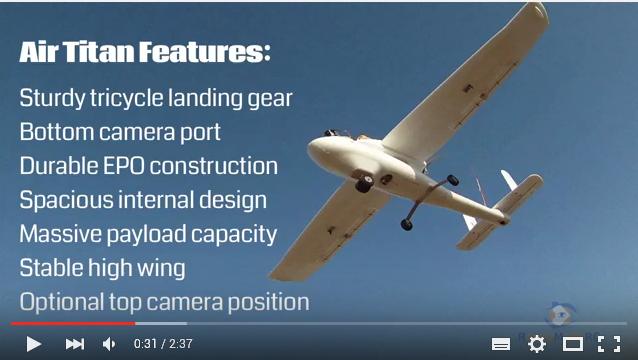

Presenting the Air Titan! RMRC





Airplane Basic info
[Shipping Weight]	7.0kg
[Wing Span]	2520MM
[Length]	1600
[Flap]	No
[Max.AUW]	8.0kg
[Propeller]	15*8" (not included)
