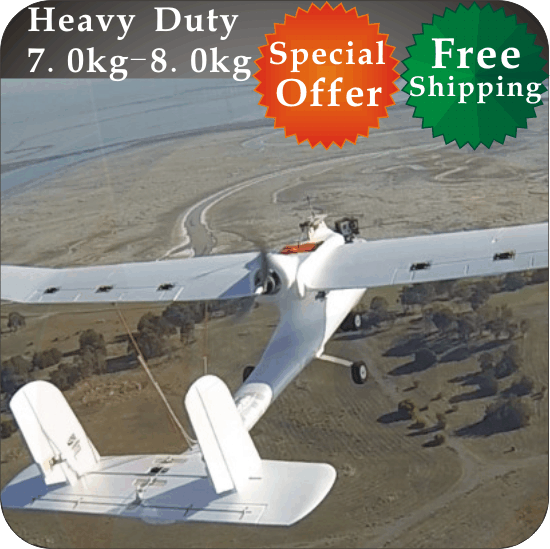

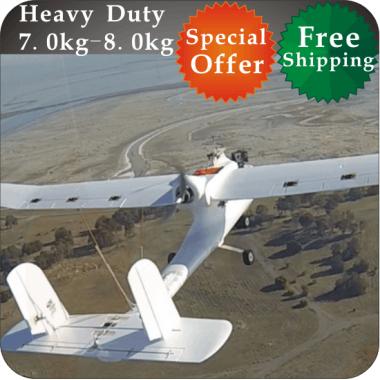

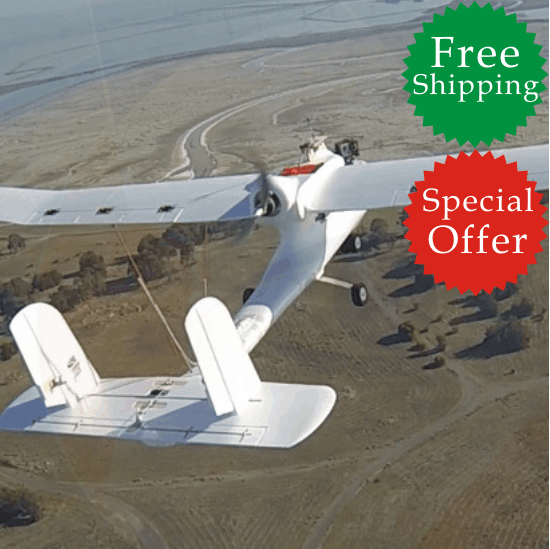

无人机 UAV FPV Aircraft  AirtitanSpecifications

Wingspan: 2520MM/ 99.2inch

Kits Airplane weight:2.4kg(5.3IB) including all reinforcement parts

(Glue not included for the sake of Airmail Restrictions)

Extra Payload:3.0kg-4.0kg (6.6IB-8.8IB)

AUW  Flight weight>7.0kg

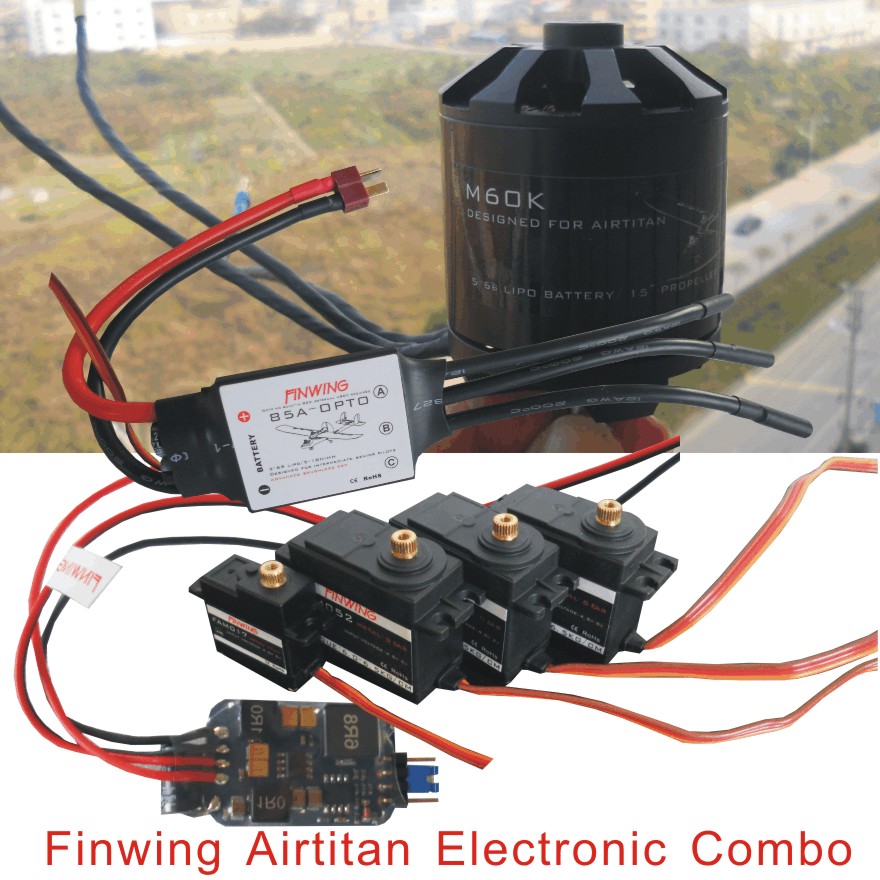

Customized Brushless Power system:

Customized Motor for Airtitan:  M60K/ Power 1500W

Testing static thrust: 5.5-6.0kg (6S, 15" Prop)

Propeller recommend: 15*6 / 15*7

ESC: Advanced 85A OPTO( without Built-in BEC)

External UBEC: 5V/6A,5.5V/6A or 6V/6A (Switchable)

Customized Servo:

3PCS 6kg Torque/CM  Metal gear servo (For Aileron and steerable landing gear)

1PCS 2.5kg Torque/CM Metal Gear Servo (Elevator)

2PCS 2.2kg Torque/CM Plastic Gear Servo (Rudder)

Battery Recommendations:

Recommend 5S-6S Lipo 10000mah    (7S or more cells lipo battery no advised)

Recommend lower discharge rate battery ( for example 10C or 5C is okay)

High Quality Reinforcement :

Main-wing: built- in 4PCS alloy aluminum plus 2PCS carbon tube through the Main-wing

Control surface of Aileron and Elevator: carbon tube reinforced, no need further DIY

Horizontal stabilizer: 2PCS carbon tube reinforced

Tail-boom :1PCS Carbon Tube combined with thick Plywood reinforced

Stainless steel servo horn and Aluminium clevis

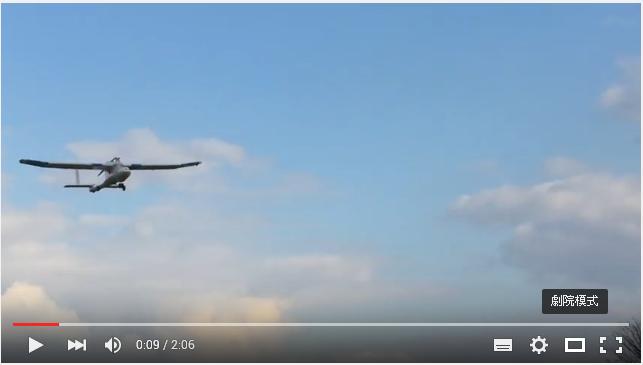

UAV Air Titan landing itself with no auto pilot! MrDisc000

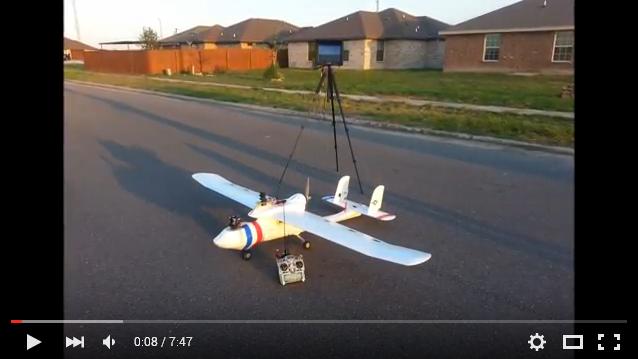

FPV Finwing Air Titan test Phil Johnson





UAV Finwing Air Titan Maiden Flight jwall2011





Presenting the Air Titan! RMRC

Airplane Basic info
[Shipping Weight]	8.0kg
[Wing Span]	2520MM(99.2")
[Length]	1600MM
[Flap]	No
[Max.AUW]	8.0kg
[Propeller]	15*8"(not included)
Power System
[Motor]	Super M60K/ Power 1500W
[ESC]	85A OPTO
[External BEC]	6A BEC
[Servo]	3*6kg Metal+1*2.5kg Metal+2*2.2kg (Torque)
